Prepare a Pickup for spawning

Object Spawn System is primarily intended for spawn targets that contain VRCPickup.

This page explains how to adapt an existing Pickup in your world for use with Object Spawn System.

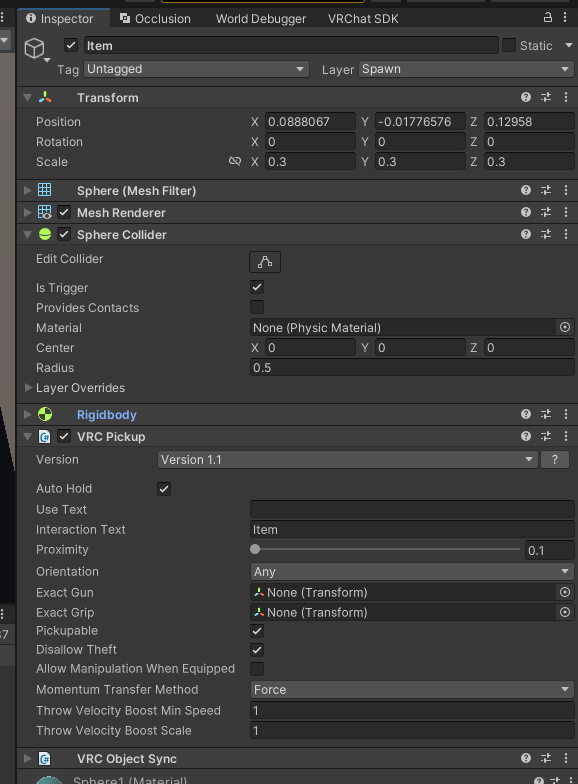

Required components

Confirm that the spawn target GameObject has the following components.

Component	Purpose
VRCPickup	Allows players to hold the object
Rigidbody	Controls the physical behavior of the Pickup
Collider	Detects collisions between the Pickup and Return trigger

If position and rotation need to be synchronized between players, use an appropriate synchronization component for your use case. VRCObjectSync is one option, but it is not required for Object Spawn System to operate.

1. Check the target GameObject

In the Hierarchy, select the Pickup that you want Object Spawn System to spawn.

In the standard version, the following must all be the same GameObject.

• The GameObject registered in VRCObjectPool
• The GameObject containing VRCPickup
• The GameObject containing the Collider that enters the Return trigger

Structure supported by the standard version

If VRCPickup or the Collider used for Return detection is on a child GameObject, consider using the Object Spawn Extension.

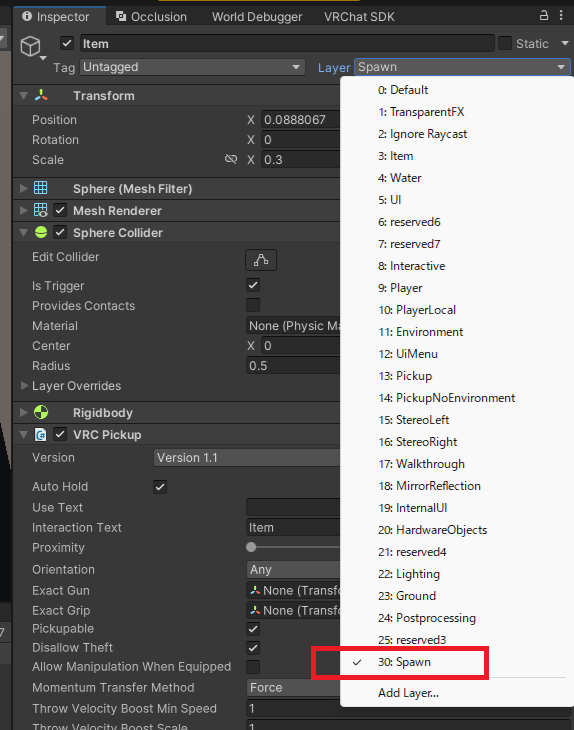

2. Configure a dedicated layer

We recommend creating a dedicated layer for objects returned by Object Spawn System.

1. Add a new layer in Unity's Layer settings
2. Assign the new layer to the GameObject that is both a spawn target and a Pickup
3. Assign the same layer to child GameObjects as needed. However, in the standard version, the Collider used for Return detection must be on the same GameObject that is registered in VRCObjectPool
4. Set the Layer field of the ReturnObject created later to the same layer number

Matching Layer values

Set the Pickup GameObject and ReturnObject to the same layer number.
If the numbers do not match, placing the Pickup in the Return trigger will not hide it.

When preparation is complete, continue to Configure VRCObjectPool and register the GameObject in the Pool array.
